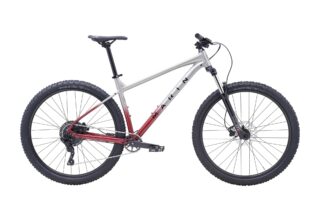

Bobcat Trail 3

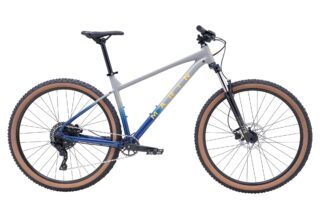

See this bike in a different color:
- Price: *
- Suspension: SR/Suntour XCM HLO
- Wheel Size: 29", 27.5"
- Frame: Aluminum
- Size Range: S, M, L, XL
Size Rider height range XS 4'10" to 5'2" S 5'2" to 5'5" M (27.5/29) 5'5" to 5'9" L 5'9" to 6'0" XL 6'0" to 6'3" - Manufacturer’s suggested retail price may not include additional shipping or preparation charges. Please contact your local Marin dealer for a quote.
- Series 2 aluminum frame w/double butted tubing & internal cable routing
- SR/Suntour XCM HLO fork w/120mm travel & hydraulic lockout
- microSHIFT 1x 9-speed drivetrain
- Tektro hydraulic disc brakes
Jump to…
Specifications
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension
SR/Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset
Rim
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Hub Rear
Forged Alloy, Disc, 32H
Hub Front
Forged Alloy, Disc, 32H
Spokes
14g Black Stainless Steel
Tires
MTB, 27.5/29x2.25"
Derailleur Rear
microSHIFT Advent 9, Clutch
Derailleur Front
-
Shift Lever
microSHIFT Advent 9 Trail
Crankset
Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Cassette
SunRace 9-Speed, 11-46T
Brakes Front
Tektro M280 Hydraulic Disc, 180mm Rotor
Brakes Rear
Tektro M280 Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro M280 Hydraulic
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem
Marin Alloy, 31.8mm Clamp, 45mm
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seatpost
Marin Alloy, 30.9
Saddle
Marin MTB
Pedals
Nylon Platform
Specifications, pricing, and availability are subject to change without notice.
Geometry

XS | S | M (27.5) | M (29) | L | XL | |
---|---|---|---|---|---|---|
Stack | 599 | 603 | 608 | 635 | 639 | 644 |
Reach | 430 | 445 | 455 | 455 | 475 | 495 |
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66° | 66° | 66° |
Head Tube Length | 100 | 105 | 110 | 110 | 115 | 120 |
Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
Seat Tube Length | 330 | 381 | 431 | 431 | 482 | 520 |
Top Tube Effective | 596 | 612 | 623 | 631 | 652 | 673 |
BB Height | 307 | 307 | 307 | 311.5 | 311.5 | 311.5 |
BB Drop | 48 | 48 | 48 | 61 | 61 | 61 |
Chain Stay | 415 | 415 | 415 | 430 | 430 | 430 |
Wheel Base | 1127 | 1144 | 1156 | 1186 | 1208 | 1230 |
Stand Over Height | 620 | 640 | 690 | 704 | 732 | 760 |
Fork Offset | 42 | 42 | 42 | 46 | 46 | 46 |
SeatPost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
Stem Length | 45 | 45 | 45 | 45 | 45 | 45 |
Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
All lengths in millimeters
Technology
SERIES 2 ALUMINUM FRAME
The Bobcat Trail has a Series 2 aluminum frame that features double butted 6061 tubing, internal cable routing, and forged 135mm open dropouts that ensure a stiff and light frame package. Available with 27.5” (S/M frames) or 29” (M/L/XL frames) wheels, depending on size and preference.

29” OR 27.5” WHEELS
The Bobcat Trail has a growing wheel size strategy for the best fit and performance with the choice of 27.5” or 29” platforms on the size M, 27.5” wheels on sizes XS and S, and 29” wheels on sizes L, XL, and XXL.

TRAIL GEOMETRY
All Bobcat Trail models feature Marin Trail geometry, featuring a long-ish reach, low standover, slack head tube, and steep seat tube angles, giving riders confidence and predictable handling to have a blast on the trail.

FASTBACK SEATSTAY DESIGN
Fastback seatstays add vertical compliance without sacrificing power transfer, and feature rack mounts for extended trail adventures.

INTERNAL DROPPER COMPATIBLE
Bobcat Trail models have a 30.9mm seatpost and internal cable routing ports for future dropper post compatibility.
